Playskool Express 1988 - 1991 Train Sets and Accessories

This retro train set was one of my favorite and easy to use train sets growing up.

I remember as a kid playing with both the 1988 and the 1991 train sets. I received for Christmas the 1988 train set from Santa and my brother who was 4 years younger than me later received the 1991 train set. This set was easy to use for kids and durable. As years have gone by and now having kids of my own, I was very disappointed in the young kid train set options so I am setting out to bring this set back to life.

How-To and Tutorials

Locomotive Assembly and Maintenance (Playskool Express)

Manuals

If you have other Playskool Express accessories and set manuals, please send them to us at info@m86toys.com

758KB
playskoolExpress_1988_manual_scanByMalaMaker.pdf
PDF
Open
589KB
playskoolExpress_1991_manual_scanByMalaMaker.pdf
PDF
Open

1988 Model Variations & Dating Your Train

Through repairing and restoring a growing number of Playskool Express locomotives, I began noticing consistent physical differences across units that are all labeled as 1988 models. Over time, these differences formed clear patterns that point to multiple manufacturing revisions during the first year of production.

At this point, I have personally worked on roughly 17–18 locomotives, including one example that appears to fall between two known production versions. Based on repeated tear-down inspection and repair work, I currently recognize three primary production variants within the 1988 locomotive line, along with several smaller feature changes that occurred throughout manufacturing.

These differences are primarily concentrated in the lower chassis and drive wheel assembly, and revolve around two specific design changes that provide reliable identification of production version.

Identified Production Versions

The observed production variants can be grouped as follows:

Production Version
Lower Chassis Nose
Drive Axle Bushings
Notes

Early 1988

Present

Present

Earliest configuration observed

Mid 1988

Present

Absent

Transitional design revision

Late 1988 → 1991

Absent

Absent

Final production configuration

Feature #1 – Lower Chassis Nose Geometry

Early and mid-production 1988 locomotives include a raised molded protrusion (“nose”) at the front of the lower chassis cover. In later production, this molded feature was removed entirely, resulting in a flatter and simplified front profile.

This difference is visible once the lower chassis cover is removed and serves as a clear indicator of early or mid-1988 production.

  • Nose present → Early or mid 1988 production

  • Nose absent → Late 1988 or 1991 production

This feature alone does not distinguish early from mid-1988 models but reliably separates early/mid units from later production.

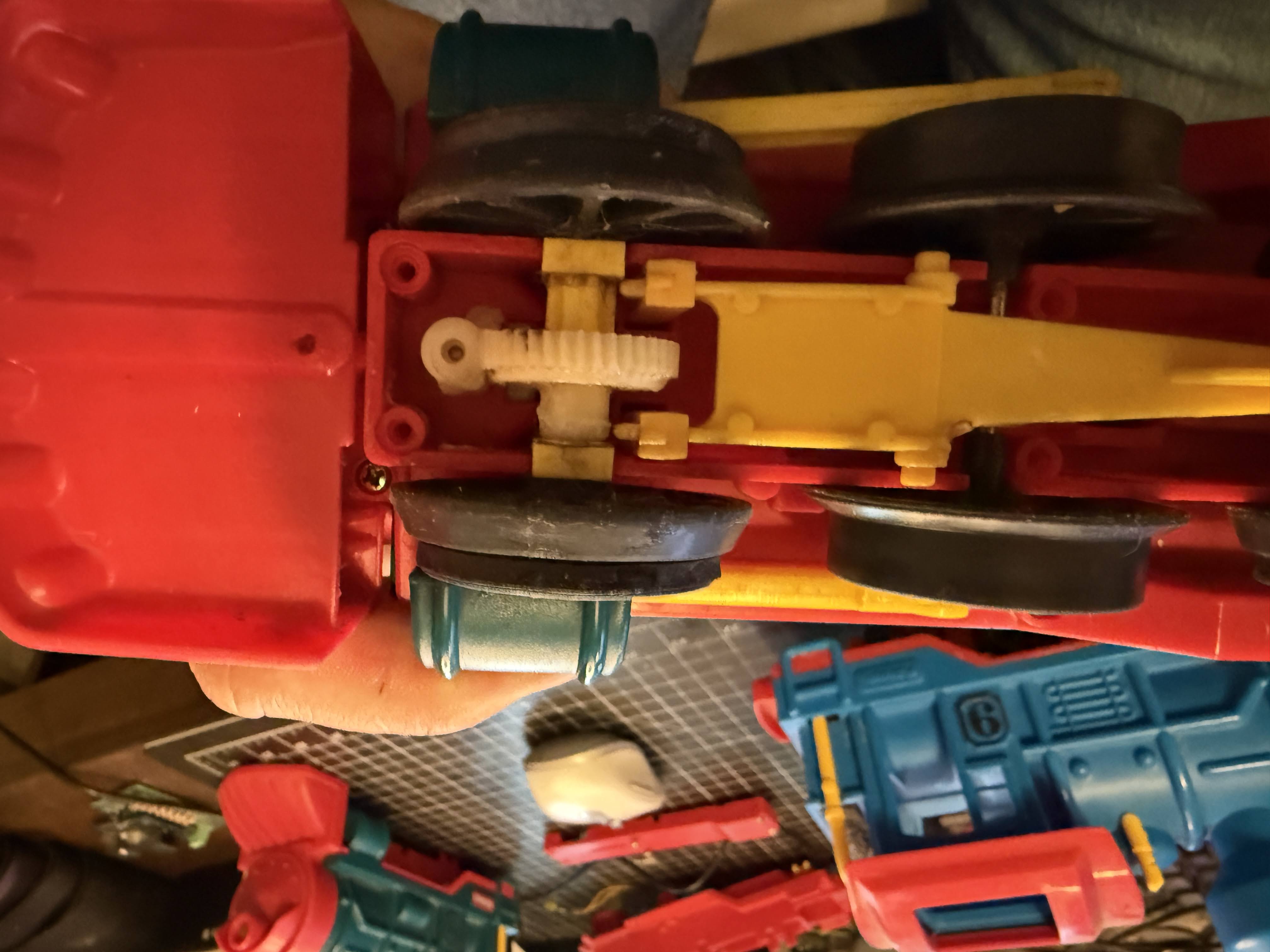

Feature #2 – Drive Wheel Axle Bushings

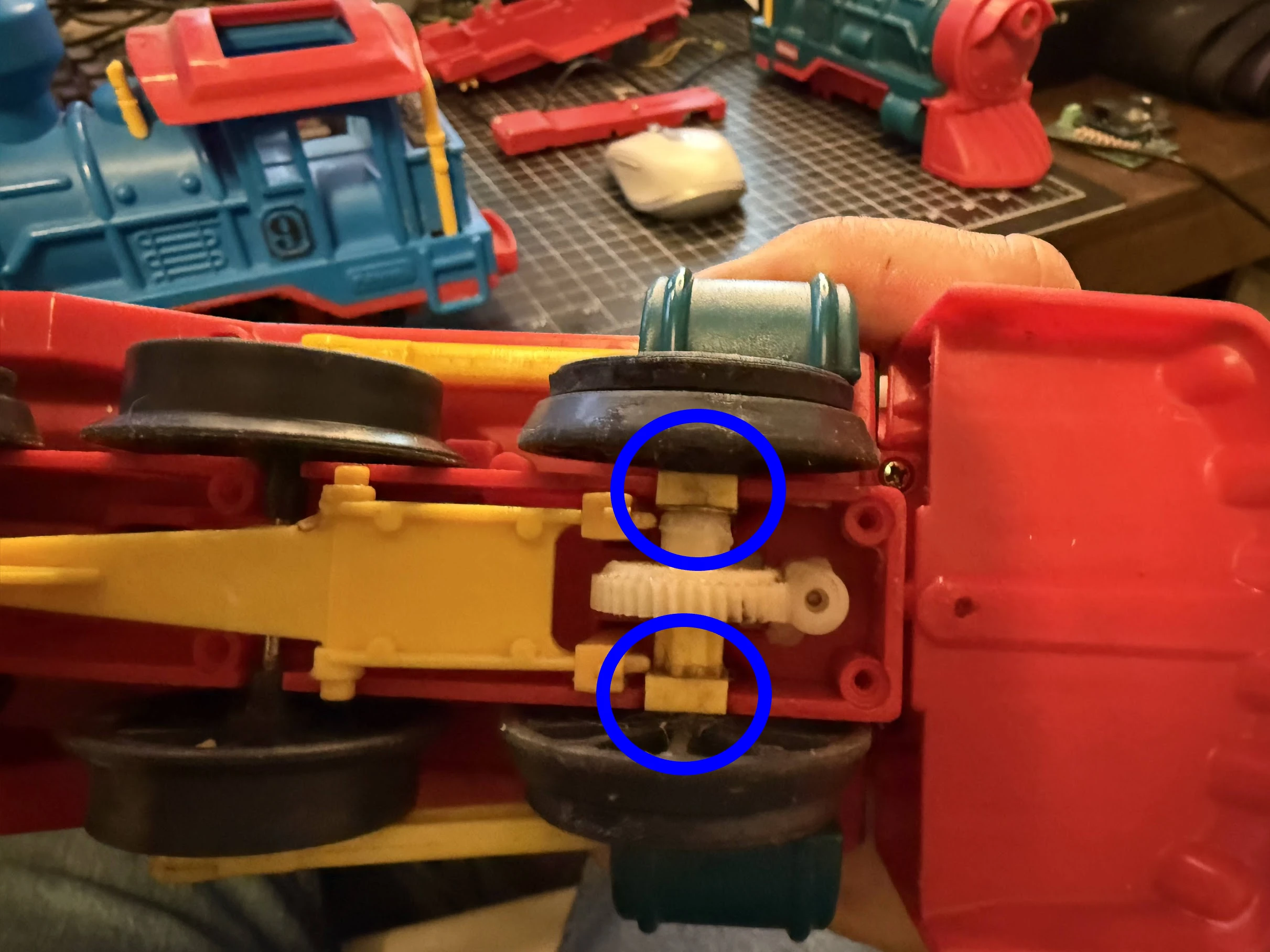

Early 1988 locomotives utilize plastic axle bushings on both sides of the drive wheel axles, creating a bearing surface between the axle and the chassis.

Mid-1988 and later models eliminated these bushings, and the axle instead rides directly against the molded chassis plastic.

This difference is visible once the lower shell is removed and provides the primary distinguishing feature between early and mid-1988 production.

  • Bushings present → Early 1988 production

  • Bushings absent → Mid 1988 or later production

Combined Identification Guide

Using both features together allows reliable production classification:

Chassis Nose
Axle Bushings
Classification

Present

Present

Early 1988

Present

Absent

Mid 1988

Absent

Absent

Late 1988 – 1991

This method allows accurate identification without reliance on packaging, documentation, or serial markings.
